CB-SP2S-TF Super High Pressure Hydraulic Quick Couplings
Compact. Extreme Pressure. CEJN-Compatible.
Introduction:
CB-SP2S-TF is a compact super high-pressure quick coupling designed for specialized hydraulic tools such as jacks, rescue equipment, and torque tools. With a rated pressure of 21739 PSI and 3/32" body size, it offers high-performance operation where space is limited but pressure demands are extreme. This model is fully compatible with CEJN 115 and 116 series, making it ideal for European-standard systems.
Key Features:
• Super Compact, Super Strong: Engineered for high-pressure tools where space is tight and reliability is non-negotiable.
• 21739 PSI Rated Pressure: Designed for critical hydraulic systems that operate in extreme pressure ranges.
• Precise Machining: All parts are machined from solid bar stock and hardened for durability and impact resistance.
• CEJN-Compatible Interface: Matches dimensional and performance standards of CEJN 115/116 Series for hassle-free integration.
• Leak Prevention Design: The poppet valve and valve sleeve system minimizes fluid loss during connection and disconnection.
• Ball-Lock Engagement: Secure locking ensures safety under pressure with fast and easy coupling.
Technical Specifications:
| Parameter | Value |
| Body Size | 3/32" |
| Rated Pressure (PSI) | 21739 |
| Rated Flow (GPM) | 1 |
| Temperature Range | -30°C to +100°C |
| Seal Material | NBR |
| Standard Interface | CEJN 115 / 116 Compatible |
Performance Curve:
Pressure drop vs. flow rate (GPM) chart for 3/32” body size.
What Makes CB-SP2S-TF Different from Other High-Pressure Couplings?
While CB-SP3S-TC and similar models are designed for standard industrial high-pressure jacks and tools, CB-SP2S-TF targets applications that demand:
• Micro-scale footprint with ultra-high pressure
• Direct compatibility with CEJN systems
• Operation in emergency, rescue, and aerospace environments
This makes it ideal when you need compact dimensions without compromising strength.
FAQ
Q: Is CB-SP2S-TF interchangeable with CEJN couplers?
A: Yes, this model is designed for full compatibility with CEJN 115 and 116 Series in both dimensions and performance.
Q: Can CB-SP2S-TF be used in place of standard 3/8” high-pressure couplers like CB-SP3S-TC?
A: Only if the size and flow requirements match. CB-SP2S-TF is optimized for smaller-scale equipment and systems.
Q: Does CB-SP2S-TF support swivel or rotating under pressure?
A: No. Like all threaded high-pressure couplers, rotation under pressure may damage seals or threads.
|
|

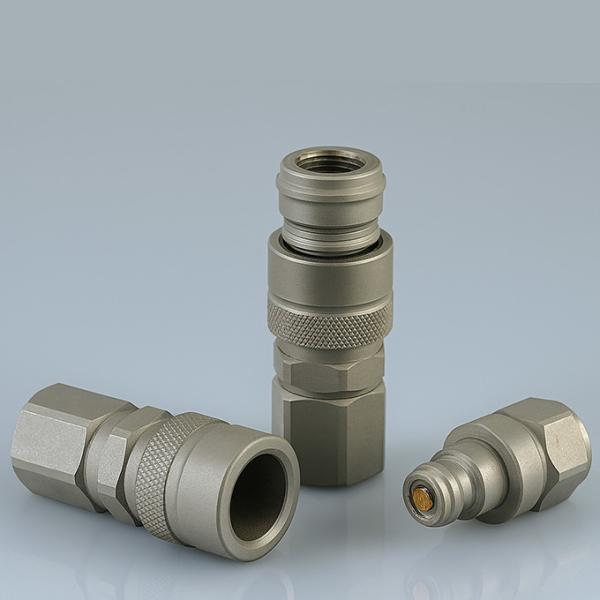

high pressure hydraulic quick couplings cb sp2s tf Images
|
